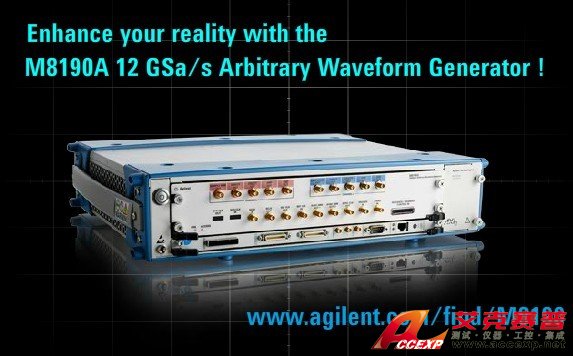

安捷倫 M8190A 12 GSa/s 任意波形信號發生器
名稱：頻譜分析儀
品牌：
型號：
簡介：M8190A 12 GSa/s Arbitrary Waveform Generator主要特性與技術指標 Precision AWG with two DAC settings From low-observable systems to...
申請服務
- 產品介紹
M8190A 12 GSa/s Arbitrary Waveform Generator主要特性與技術指標 Precision AWG with two DAC settings
From low-observable systems to high-density comms, testing is more realistic with precision arbitrary waveform generation. Now you can take reality to the extreme: An Agilent AWG is the source of greater fidelity, delivering high resolution and wide bandwidth – simultaneously. This unique combination lets you create signal scenarios that push your design to the limit and bring new insight to your analysis. Get bits and bandwidth – and enhance your reality.
- 14-bit resolution up to 8 GSa/s
- 12-bit resolution up to 12 GSa/s
•Variable sample rate from 125 MSa/s to 8 / 12 GSa/s
•Spurious-free-dynamic range (SFDR) up to 80 dBc typical
•Harmonic distortion (HD) up to-72 dBc typical
•Up to 2 GSa arbitrary waveform memory per channel with advanced sequencing
•Analog bandwidth 5 GHz (direct DAC out)
•MATLAB software for the M8190A available directly from Agilent for making your own arbitrary waveforms (multi-tone signals, pulsed radar signals, and multi-carrier modulated waveforms), measurement and analysis routines, and instrument applications.
•33503A BenchLink Waveform Builder Pro Software makes custom waveforms quick and easy

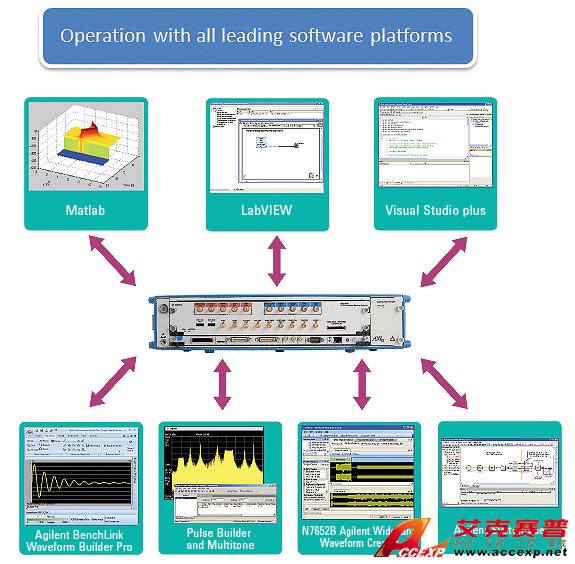

•Works with all leading software platforms
Key applications:
•Radar, Satellite, Electronic Warfare, Multilevel Signals
•ADC testing (Analog Digital Converter testing), Jitter Margin Testing
•Digital Video, Noise Power Ratio Measurement, Wireless HD
•IEEE 802.11ac, IEEE 802.11ad, Software Defined Radio

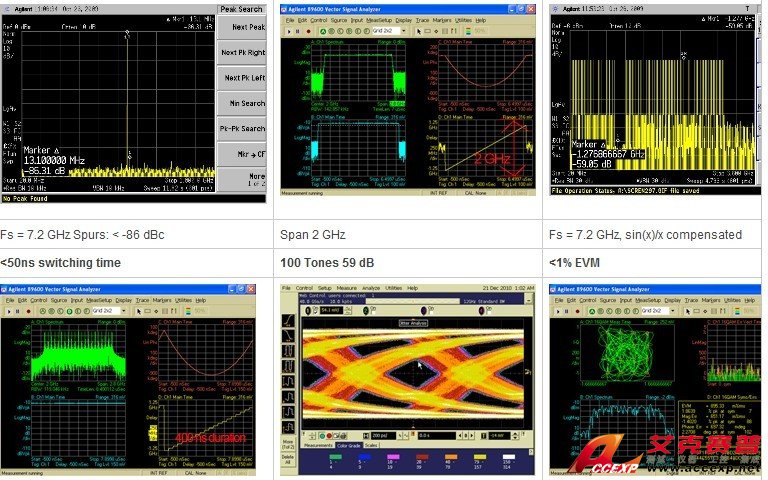

Unique Performance – Unique Value
Up to 80 dBc SFDR
•Tones clearly stand out of noise
•even with thousands of tones
2 GSa memory per channel
•Realistic signal scenarios with long play time
5 GHz analog bandwidth
•Mimic analog imperfections with custom ISI
